Artemis V Lunar Terrain Vehicle tires wheels design: Forget your everyday tires! We’re talking about wheels built to conquer the lunar landscape – a place where extreme temperatures, radiation, and micrometeoroid impacts are the norm, not the exception. This isn’t just about rubber and metal; it’s a deep dive into material science, engineering ingenuity, and the sheer will to explore the moon. Get ready for a wild ride as we unpack the challenges and innovations behind designing tires for the ultimate off-road adventure.
From selecting the perfect tire material that can withstand the lunar environment’s harsh conditions to designing wheel configurations that maximize traction on the uneven regolith, every aspect presents a unique set of engineering puzzles. We’ll explore different wheel designs, analyze the impact of lunar regolith on tire performance, and delve into the intricacies of tire pressure control systems in this extreme environment. We’ll also uncover the potential failure modes and discuss strategies to ensure the Artemis V rover’s wheels keep spinning.

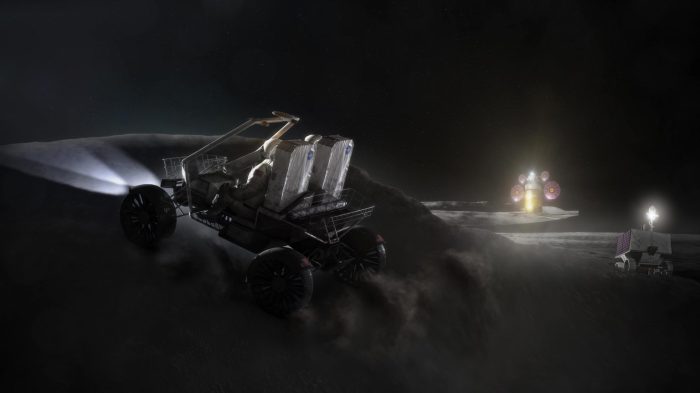

Artemis V Lunar Terrain Vehicle
The Artemis V Lunar Terrain Vehicle (LTV) represents a significant leap forward in lunar exploration, demanding innovative solutions for traversing the challenging lunar landscape. A key component of this advancement lies in the design and material selection for its tires. The extreme conditions on the Moon—including temperature fluctuations, radiation exposure, and the constant threat of micrometeoroid impacts—require tire materials possessing exceptional durability and resilience. This section will delve into the critical considerations involved in selecting and manufacturing these crucial components.
Tire Material Considerations for the Artemis V Lunar Terrain Vehicle
The selection of tire materials for the Artemis V LTV is paramount to its operational success. Several factors must be carefully weighed, including resistance to extreme temperatures, radiation hardening, and impact resistance from micrometeoroids. The following table compares five potential materials based on these crucial properties. Note that the values are estimations based on current material science and may vary depending on specific formulations and processing techniques.
| Material | Temperature Resistance (°C) | Radiation Resistance (Gy) | Micrometeoroid Impact Resistance |
|---|---|---|---|
| High-Strength Steel | -200 to 500 | High | High |
| Titanium Alloy | -253 to 500 | Moderate | High |
| Kevlar-Reinforced Elastomer | -150 to 150 | Low | Moderate |
| Carbon Nanotube Composite | -200 to 800 | High | High |
| High-Performance Polymer Blend (e.g., PTFE/PFA blend) | -200 to 250 | Moderate | Moderate to High (depending on filler materials) |
Manufacturing Process for High-Performance Lunar Tire Material
Producing a high-performance lunar tire material presents unique challenges. For instance, a carbon nanotube composite tire might involve several intricate steps. Initially, high-quality carbon nanotubes would need to be synthesized and purified to ensure consistent structural integrity. These nanotubes would then be meticulously dispersed within a chosen polymer matrix (e.g., a high-temperature epoxy resin), potentially using advanced techniques like sonication or high-shear mixing to achieve optimal dispersion and prevent agglomeration. The resulting composite would be molded into the desired tire shape using techniques such as compression molding or injection molding under controlled temperature and pressure conditions. Finally, rigorous quality control measures would be implemented throughout the process to ensure the final product meets the stringent performance requirements for lunar operation. The extreme temperature variations on the Moon necessitate the use of materials with a low coefficient of thermal expansion to minimize dimensional changes and potential cracking.
Material Testing Protocol for Lunar Tire Materials
A comprehensive testing protocol is crucial to evaluate the durability and performance of potential lunar tire materials. This protocol should encompass several stages of testing under simulated lunar conditions. The first stage would involve thermal cycling tests, exposing samples to extreme temperature fluctuations between -180°C and +120°C to mimic the lunar diurnal cycle. The second stage would focus on radiation exposure, using controlled sources to simulate the effects of prolonged exposure to solar and cosmic radiation. The third stage would involve micrometeoroid impact testing, using high-velocity projectiles to simulate impacts at various velocities and angles. Finally, a mechanical performance evaluation would assess the tire’s ability to withstand repeated deformation and maintain its structural integrity under simulated lunar gravity and load conditions. The data collected from each stage would be rigorously analyzed to determine the material’s suitability for lunar application.
Wheel Design and Configuration for Artemis V
Source: scitechdaily.com
The Artemis V lunar terrain vehicle requires a robust and adaptable wheel system capable of navigating the challenging lunar surface. Factors such as regolith composition, terrain variations, and the mission’s operational requirements heavily influence the optimal wheel design and configuration. The following sections delve into the specifics of wheel design, size, configuration, and the crucial role of suspension systems in ensuring successful lunar exploration.
Several wheel designs are being considered for the Artemis V rover, each with its own strengths and weaknesses. The choice will involve a careful trade-off between weight, traction, puncture resistance, and overall operational efficiency.
Wheel Design Options for Lunar Terrain
Various wheel designs offer unique advantages and disadvantages when considering the extreme conditions of the lunar surface. The selection process prioritizes maximizing traction, minimizing weight, and ensuring resilience against punctures and damage from the sharp lunar regolith.
- Spoked Wheels: These offer a good balance of weight and strength. The spokes distribute stress effectively, reducing the likelihood of catastrophic failure. However, the spokes themselves are potential points of weakness and could be susceptible to damage from impacts.
- Solid Wheels: Solid wheels provide exceptional puncture resistance. Their monolithic structure eliminates the risk of spoke failure, and they can handle significant impacts. However, they are considerably heavier than spoked wheels, which impacts the rover’s overall mobility and energy consumption.
- Honeycomb Wheels: These wheels combine the strength of a solid design with a lighter weight. The honeycomb structure provides high strength-to-weight ratio, enhancing both durability and mobility. They offer a compromise between the weight of solid wheels and the potential vulnerability of spoked wheels.
Wheel Size and Configuration Considerations
The size and configuration of the wheels significantly influence the Artemis V rover’s performance. Larger wheels generally offer better traction and obstacle-clearance capabilities, while smaller wheels may be more maneuverable and less energy-intensive.
- Large Wheels (e.g., >1 meter diameter): Offer superior obstacle clearance, reducing the likelihood of getting stuck in craters or uneven terrain. However, they increase the overall weight and potentially reduce maneuverability in confined spaces.
- Small Wheels (e.g., <0.5 meter diameter): Provide better maneuverability and lower weight, resulting in improved energy efficiency. However, they may struggle with larger obstacles and may be more susceptible to getting stuck in the lunar regolith.
- Multiple Wheel Configurations: Different wheel configurations (e.g., six-wheeled, eight-wheeled) offer trade-offs between stability, maneuverability, and weight distribution. A six-wheeled configuration provides a good balance, while an eight-wheeled configuration offers increased redundancy and stability.
Suspension System Importance for Lunar Terrain
Maintaining consistent tire contact with the uneven lunar surface is critical for optimal traction and mobility. The suspension system plays a vital role in achieving this. A well-designed suspension system will absorb shocks, maintain wheel-to-surface contact, and minimize wheel slippage.
The suspension system must be robust enough to handle the impacts and vibrations encountered on the lunar surface, yet flexible enough to maintain tire contact with the irregular terrain. A system with independent suspension for each wheel will provide optimal performance and reduce the likelihood of wheel slippage.
Minimizing wheel slippage is crucial for efficient locomotion and accurate navigation. Slippage not only wastes energy but also reduces the rover’s ability to traverse challenging terrain. The suspension system’s design should actively counteract this tendency.
A combination of advanced shock absorbers, spring systems, and possibly active control mechanisms will be essential in maintaining optimal wheel-to-surface contact across diverse lunar terrains. This is particularly important for preventing wheelspin and ensuring reliable traction.
Traction and Mobility on the Lunar Surface
Source: teslarati.com
The lunar surface presents a unique challenge for wheeled vehicles. Unlike Earth’s terrain, the lunar regolith—the layer of loose, powdery material covering the moon—possesses distinct properties that significantly impact traction and mobility. Understanding these properties and developing innovative solutions is crucial for the success of missions like Artemis V. This section delves into the complexities of lunar traction, examining the influence of regolith characteristics on tire performance and exploring advanced traction enhancement techniques.
The lunar regolith is far from uniform. Its composition, grain size distribution, and cohesion vary considerably across the lunar surface. These variations directly affect how a vehicle’s tires interact with the ground, impacting both traction and mobility. Smaller particles can easily become compacted, creating a hard, relatively smooth surface, while larger, looser particles can lead to significant slippage and wheel sinkage.
Lunar Regolith Properties and Tire Performance
| Property | Description | Impact on Tire Performance | Mitigation Strategies |
|---|---|---|---|
| Grain Size Distribution | Ranges from fine dust to larger rocks; significant variations across lunar regions. | Fine dust can lead to clogging and reduced traction; larger rocks can cause punctures and uneven load distribution. | Optimized tread patterns, robust tire construction, suspension systems capable of handling uneven terrain. |
| Cohesion | Relatively low cohesion compared to terrestrial soils, leading to loose, easily disturbed material. | Increased wheel slip and sinkage, reduced traction, potential for vehicle entrapment. | Wider tires, low-pressure tires, innovative tread designs to maximize contact area. |
| Shear Strength | The resistance of the regolith to deformation under stress. This varies greatly depending on compaction and grain size. | Determines the maximum force a tire can exert before slippage occurs. Lower shear strength leads to reduced traction. | Adaptive suspension systems, tire pressure control, traction control algorithms. |
| Compressibility | The ability of the regolith to be compressed under load. | Affects tire sinkage and the effective contact area. Highly compressible regolith leads to increased sinkage and reduced traction. | Low-pressure tires, wider tires, innovative tread designs to distribute load effectively. |
Innovative Traction Enhancement Techniques
Several innovative approaches are being explored to improve traction on the lunar surface. These go beyond simply designing robust tires and encompass advanced technologies to enhance interaction with the challenging regolith.
- Active Suspension Systems: These systems dynamically adjust the vehicle’s suspension based on terrain conditions, maintaining optimal tire contact and minimizing wheel slip. For example, a system might adjust suspension stiffness to reduce sinkage in loose regolith while providing a smoother ride over rocky areas.
- Tire Pressure Control: The ability to adjust tire pressure in real-time allows for optimization based on terrain conditions. Lower pressure increases the contact area, improving traction in loose regolith, while higher pressure can improve stability on firmer surfaces. The Mars rovers utilize a similar approach, though lunar regolith presents unique challenges.
- Wheel-Based Traction Enhancement: This involves incorporating mechanisms directly into the wheels themselves, such as small, independently driven rollers or treads that can adapt to varying surface conditions. This allows for improved traction even if the main tire encounters loose material.
Optimized Tread Pattern Design
An optimal lunar tire tread pattern needs to balance several conflicting requirements: maximizing contact area for traction, minimizing clogging from fine dust, and providing sufficient self-cleaning to prevent material buildup. A design incorporating a combination of wide, shallow grooves and smaller, closely spaced lugs could achieve this. The wide grooves would provide ample space for loose regolith to escape, preventing clogging. The smaller lugs would enhance grip and provide multiple points of contact, increasing traction even on relatively smooth surfaces. The overall tread pattern would be designed with a slightly convex profile, maximizing contact area without excessive sinkage.
Designing Artemis V’s lunar rover wheels is a serious challenge, needing treads that can handle the regolith. Think about the geopolitical implications – the success of this mission could significantly impact the narrative surrounding the project good old USA Russia 2024 election , potentially shifting global power dynamics. Ultimately, the Artemis V wheel design directly reflects our ambitions for lunar exploration and its influence on future international relations.
Tire Pressure and Inflation Systems: Artemis V Lunar Terrain Vehicle Tires Wheels Design
Maintaining optimal tire pressure is crucial for the Artemis V lunar rover’s mobility and operational lifespan. The extreme temperature fluctuations and harsh lunar environment present significant challenges to traditional tire inflation systems. This section explores various inflation system designs, their suitability for lunar conditions, and a proposed self-regulating system.
The selection of a suitable tire inflation system for the Artemis V lunar rover requires a careful balancing act between reliability, efficiency, and resilience. Several factors must be considered, including the extreme temperature variations on the lunar surface, the risk of punctures or damage from micrometeoroids, and the need for a system that can operate autonomously with minimal human intervention.
Comparison of Tire Inflation Systems for Lunar Operation
Three primary tire inflation system types are considered: conventional pneumatic systems, solid-state tires, and a novel system utilizing shape-memory alloys. Conventional pneumatic systems, while familiar and relatively simple, are vulnerable to punctures and pressure loss in the harsh lunar environment. Solid-state tires, on the other hand, eliminate the risk of punctures but sacrifice shock absorption and traction compared to pneumatic systems. Shape-memory alloys offer a potential middle ground, providing resilience and adaptability to changing temperatures and potential damage, although the technology is still under development and may present integration challenges. Each system presents trade-offs between reliability, efficiency, and the potential for damage.
Challenges of Maintaining Optimal Tire Pressure in Extreme Temperatures
The lunar surface experiences extreme temperature swings, ranging from over 100°C during the lunar day to -150°C during the lunar night. These fluctuations directly affect tire pressure. The expansion and contraction of the tire air (or other inflating medium) can lead to significant pressure variations, impacting traction and potentially causing tire damage. Moreover, the low lunar gravity (approximately 1/6th of Earth’s) further complicates pressure management, requiring careful calibration and control mechanisms. Consider the example of the Apollo Lunar Roving Vehicle, where maintaining tire pressure proved challenging, requiring manual adjustments during missions. The Artemis V rover needs a system far more robust and autonomous.
Design of a Self-Regulating Tire Pressure Control System
A self-regulating tire pressure control system for the Artemis V lunar rover would ideally incorporate several key components: high-precision pressure sensors, a temperature compensation algorithm, a micro-compressor or expansion valve system, and a robust, thermally insulated reservoir for the inflating medium. The system would continuously monitor tire pressure and temperature, adjusting the pressure automatically based on the calculated optimal pressure for the prevailing temperature. This algorithm would be crucial to account for the extreme temperature variations, preventing over-inflation during the lunar day and under-inflation during the lunar night. The micro-compressor would add or remove the inflating medium as needed. The reservoir would act as a buffer to help manage pressure fluctuations and provide a reliable supply of inflating medium. This system would leverage advanced materials to ensure thermal insulation and protect components from the harsh lunar environment. For example, the pressure sensors could be housed within a thermally insulated chamber and use materials resistant to radiation damage. The use of redundant components and robust error-handling mechanisms would ensure system reliability, even in the event of partial failure.
Failure Modes and Mitigation Strategies
The lunar environment presents unique challenges to the Artemis V lunar rover’s tires and wheels, demanding robust design and proactive maintenance strategies. Factors like extreme temperature fluctuations, micrometeorite impacts, and the abrasive lunar regolith can significantly impact the longevity and performance of these critical components. Understanding potential failure modes and implementing effective mitigation strategies are crucial for mission success.
The harsh lunar environment necessitates a proactive approach to maintaining the Artemis V rover’s mobility. Failure of the tires or wheels could severely jeopardize the mission, leading to costly delays or even complete mission failure. Therefore, a comprehensive understanding of potential failure modes and robust mitigation strategies are paramount.
Potential Failure Modes of Lunar Rover Tires and Wheels
Several factors contribute to the potential failure of the Artemis V lunar rover’s tires and wheels. These failures can range from gradual degradation to catastrophic events, necessitating a multi-layered approach to detection and mitigation.
- Punctures: Micrometeoroid impacts or sharp rocks within the lunar regolith can cause punctures, leading to rapid pressure loss and reduced mobility. The probability of a puncture increases with the distance traveled and the terrain’s roughness. The size and location of the puncture will dictate the severity of the issue. For example, a small puncture in a less critical area might be manageable, whereas a large puncture near the wheel rim would be more serious.
- Tears: Excessive stress on the tire material, perhaps due to impact with a large rock or from maneuvering over uneven terrain, can cause tears. The severity of a tear depends on its size and location. A small tear might be repairable, while a large tear could render the tire unusable. The material’s tensile strength and flexibility are key factors in determining tear resistance.
- Material Degradation: Exposure to extreme temperature variations (-173°C to 127°C) and the harsh UV radiation on the lunar surface can cause material degradation. This degradation manifests as cracking, hardening, and loss of elasticity in the tire material, reducing its ability to grip the lunar regolith and withstand stress. The rate of degradation is dependent on the material’s composition and the cumulative exposure to these environmental factors. For example, prolonged exposure to UV radiation could cause the tire material to become brittle and prone to cracking, reducing its lifespan and performance.
- Wheel Damage: Impacts or stress on the wheel structure itself, from large rocks or uneven terrain, can lead to cracks or deformation. The wheel’s structural integrity is crucial for maintaining proper tire inflation and load distribution. Damage to the wheel can affect tire performance and even lead to complete wheel failure.
Detection and Mitigation of Tire and Wheel Failures
Early detection of tire and wheel issues is crucial for effective mitigation. A combination of preventative measures and real-time monitoring systems is essential.
The Artemis V rover should incorporate a comprehensive suite of sensors to monitor tire pressure, temperature, and wheel alignment. This data can be transmitted back to Earth for analysis, allowing ground control to identify potential problems early on. The rover’s onboard computer could also be programmed to trigger alerts based on predefined thresholds, for instance, a significant drop in tire pressure or unusual wheel vibrations.
Mitigation strategies could include: redundant wheel systems (allowing for continued operation even with a failed wheel), onboard repair kits (allowing for minor puncture repairs), and pre-planned contingency procedures (in case of major failures requiring more extensive repairs or replacement). These strategies must consider the limitations of a lunar mission, such as limited resources and the difficulty of performing complex repairs on the lunar surface. For example, a small puncture might be patched using a sealant, while a larger tear might require a tire change, utilizing a spare tire carried onboard the rover.
Artemis V Lunar Rover Tire and Wheel Maintenance Schedule, Artemis v lunar terrain vehicle tires wheels design
A rigorous maintenance schedule is crucial to maximizing the lifespan and performance of the rover’s tires and wheels. This schedule should account for the unique challenges of the lunar environment.
| Maintenance Task | Frequency | Description |
|---|---|---|
| Tire Pressure Check | Daily | Monitor and adjust tire pressure as needed, using onboard pressure monitoring and adjustment systems. |
| Visual Inspection | Weekly | Conduct a thorough visual inspection of tires and wheels for any signs of damage, such as punctures, tears, or cracks. Use high-resolution cameras and imaging systems for detailed analysis. |
| Wheel Alignment Check | Monthly | Verify wheel alignment using onboard sensors and adjustment mechanisms to ensure optimal performance and minimize stress on the tires. |
| Temperature Monitoring | Continuous | Continuously monitor tire and wheel temperatures to detect any anomalies that could indicate overheating or material degradation. |
Ending Remarks
Source: globenewswire.com
Designing tires for the Artemis V lunar rover is no small feat. It’s a testament to human innovation and our relentless pursuit of space exploration. By carefully considering material science, wheel design, traction enhancement techniques, and robust failure mitigation strategies, we’re paving the way for a successful lunar mission. The challenges are immense, but the potential rewards—a deeper understanding of the moon and a giant leap forward for humankind—are even greater. So, next time you see a picture of the Artemis V rover, remember the incredible engineering behind those seemingly simple wheels.
